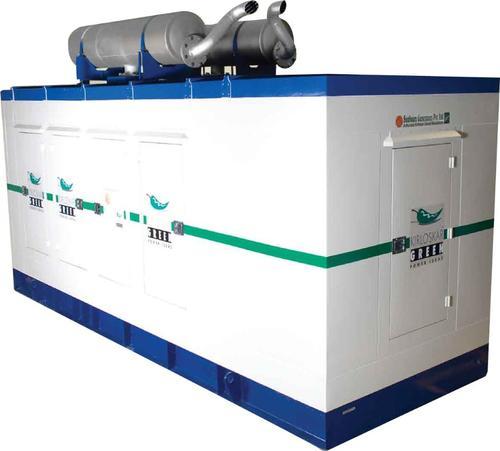

400 HD KVA / 320 KW Kirloskar Diesel Generator on Rent

400 HD KVA / 320 KW Kirloskar Diesel Generator on Rent

GENSET DETAILS

Prime Rating at rated rpm
400 HD KVA / 320 KW
Genset Model
KG1-400WS
Frequency
50 Hz
Power factor
0.8 lagging
Voltage
415 3Ø V
Governing class
G3
Noise level
dBA < 75
Fuel Consumption
Load 100%
89.5 Ltrs/Hr
Load 75%
65.1 Ltrs/Hr
Load 50%
46.0 Ltrs/Hr
Fuel Tank Capacity
850 Ltrs
Dimensions (L x W x H)
5375 x 2000 x 2408 mm
Dry weight with Canopy
6050 Kg
Wet weight with Canopy
6800 Kg
Electrical Battery
24 Volts-DC

ENGINE DETAILS

Engine Model
DV8TA G3
Rated output
360 kW
Rated output
490 HP
No. of cylinder
8
Cubic capacity
15.92 Ltrs
Bore x Stroke
130 x 150 mm
Rated Speed
1500 RPM
Aspiration
TA NA/TC/TA
Lube Oil change period
500 hrs.
Lube oil Sump Capacity
41.0 Ltrs
Coolant Capacity
112.0 Ltrs

ALTERNATOR DETAILS

Insulation Class
Class H
Alternator Efficiency
94.1 %
Max Voltage Dip at Full Load 0.8 pf Lag
< 19 % sec
Max Time to build up rated voltage at Rated RPM
< 5 sec provided engine reach the rated speed

PRIME RATTING AND STANDARD BY RATING

'Prime power' is designed for Unlimited hours, as compared to 'Emergency stand-by' designed for 200 hours in a year. Prime rated Gensets also permit 10% temporary overloading. Users need to carefully select the Genset rating to meet their requirement. KOEL offers Prime power as standard offer. Contact KOEL for stand-by ratings.

ENGINE CAPACITY DOES MATTER

Engine capacity (cc) plays a vital role in Genset performance. Higher engine capacity leads to a robust and stable Genset performance. Higher engine capacity also enables Genset to respond quickly & positively to sudden load additions.
Canopy features
  • Ease of Access and Serviceability
  • Aesthetically designed, weather and sound resistant enclosure
  • Insulation conforms to UL94-HF1 class for flammability
Controller features
  • Microprocessor based fully configured
  • Graphical bigger LCD display
  • Best in class monitoring and diagnostic
  • Integrable with AMF, synchronization & communication configurations
Engine features
  • O2E Series: Low emission, high efficiency engines
  • Compact, Robust and Rugged Design
  • 500 hours lube-oil change period
Alternator features
  • Best In Class Efficiency
  • Special Windings to Reduce Harmonics
  • Vacuum Pressure Impregnation and epoxy gel coating on winding
Monitoring features
  • Phase Voltages & Currents, Frequency, Reverse power, Genset kVA , KW, KVAr , KWH, Power Factor, Canopy Temperature
  • Lube oil Pressure, Engine Temperature RPM, Run Hours, No. of starts, Fuel Level, Auto / Manual Stop, AMF feature
  • Battery charge condition
  • Modbus communication, Remote Monitoring
Optional features
Complete Genset Control on your desktop
  • Synchronization
Optional features

KG745 Controller

KG745 Controller

  • Battery charging failure, Over/Under speed, Over Current, Over/Under Voltage, Over KW, Phase Seq., Phase missing, Mains Under voltage, Earth Fault trip, Fuel level Alarm
  • Low lube oil Pressure , High Engine Temperature, Low/High battery voltage, Low Fuel Level, Over Crank protection, Routine Maint. indicator, Genset Test Facility, Mains Frequency, Fail to crank

      Being in control of your Genset is certainly a winning edge!
